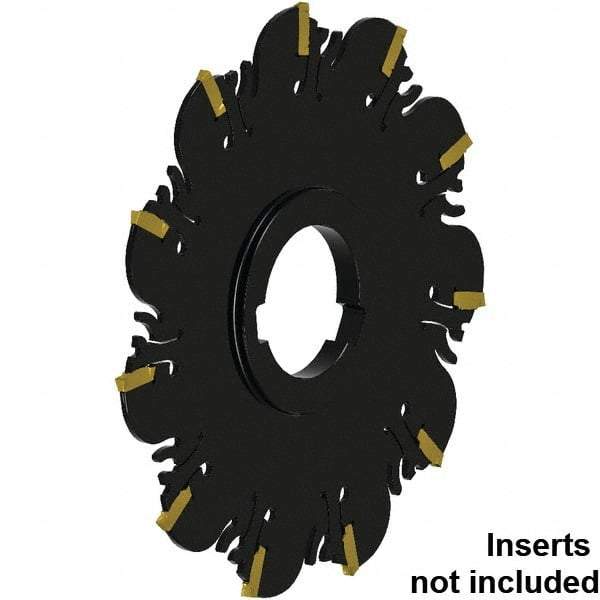

Kennametal - Arbor Connection, 0.165" Cutting Width, 29.36mm Depth of Cut, 4" Cutter Diam, 1" Hole DIam, 5 Tooth Indexable Slotting Cutter - 1" Shank Diam, FDA Toolholder, XCP42... Insert, Neutral Cutting Direction
Item #: 37908639
Brand: Kennametal
Model #: 5614879
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (mm) | 4.20 |
| Cutting Width (Decimal Inch) | 0.1650 |
| Maximum Depth of Cut (mm) | 29.36 |
| Cutter Diameter (Inch) | 4 |
| Hole Diameter (Inch) | 1 |
| Shank Diameter (Inch) | 1 |
| Number of Teeth | 5 |
| Toolholder Style | FDA |
| Series | KNS |
| Insert Style | XCP42... |
| Staggered Tooth | No |
| Number of Cutter Inserts | 5 |
| Cutting Direction | Neutral |
| Insert Holding Method | Clamp |
| Maximum RPM | 800 |
| Maximum Cutting Width (mm) | 6.00 |
| Hub Diameter (Inch) | 1-5/8 |
