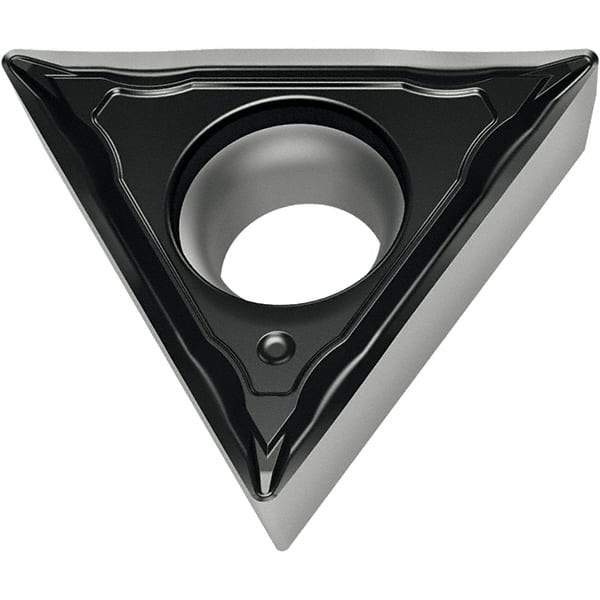

Walter - TCMT1.21.21 FM4 Grade WSM21 Carbide Turning Insert - 60° Triangle, 3.97mm Inscr Circle, 1.98mm Thick, 0.4mm Corner Radius
Item #: 38100756
Brand: Walter
Model #: 6917343
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Insert Size | 1.21.21 |
| Material | Carbide |
| Length (mm) | 6.62 |
| Inscribed Circle (mm) | 3.97 |
| Thickness (mm) | 1.98 |
| Corner Radius (mm) | 0.40 |
| Manufacturer's Grade | WSM21 |
| Chip Breaker | FM4 |
| Hole Diameter (mm) | 2.15 |
| Hole Diameter (Decimal Inch) | 0.0850 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Triangle |
