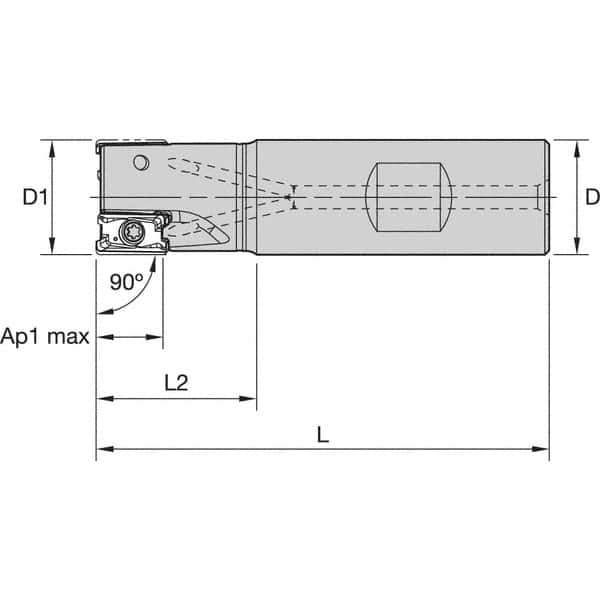

Kennametal - 3/4" Cut Diam, 11mm Max Depth of Cut, 3/4" Shank Diam, 3.13" OAL, Indexable Square Shoulder End Mill - LNGU110408SRGE Inserts, Weldon Shank, 0° Lead Angle, Through Coolant, Series Mill 4-11
Item #: 38159331
Brand: Kennametal
Model #: 6139930
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Inch) | 3.1300 |
| Overall Length/Projection (Decimal Inch) | 3.1300 |
| Lead Angle | 0 |
| Series | Mill 4-11 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 11.00 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Inch) | 3/4 |
| Minimum Cutting Diameter (Decimal Inch) | 0.7500 |
| Head Length (Inch) | 1.1000 |
| Head Length (Decimal Inch) | 1.1000 |
| Weldon Flat | Yes |
| Insert Compatibility | LNGU110408SRGE |
| Shank Length (Inch) | 2.0300 |
| Shank Length (Decimal Inch) | 2.0300 |
| Shank Length (mm) | 51.56 |
| Maximum RPM | 41700 |
| Toolholder Material | Steel |
| Coolant Hole Diameter (mm) | 4.00 |
