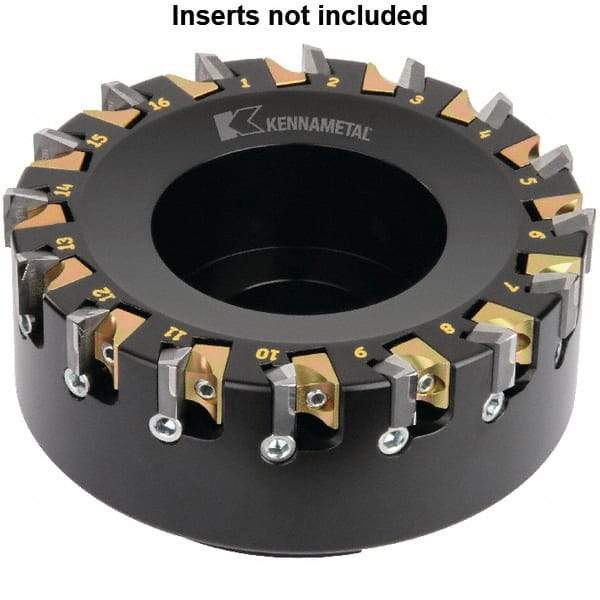

Kennametal - 16 Inserts, 5" Cut Diam, 1-1/2" Arbor Diam, 1/4" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 2-3/8" High, KSDR100031E1W4S Insert Compatibility, Series KBDM
Item #: 38161089
Brand: Kennametal
Model #: 6044712
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 127.00 |
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 0 |
| Overall Height (Inch) | 2-3/8 |
| Overall Height (Decimal Inch) | 2.3750 |
| Insert Compatibility | KSDR100031E1W4S |
| Series | KBDM |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Wedge |
| Hub Diameter (mm) | 96.83 |
| Maximum Body Diameter (Decimal Inch) | 4.9410 |
| Number of Adjustable Pockets | 16 |
| Maximum RPM | 15500 |
| Toolholder Material | Steel |
