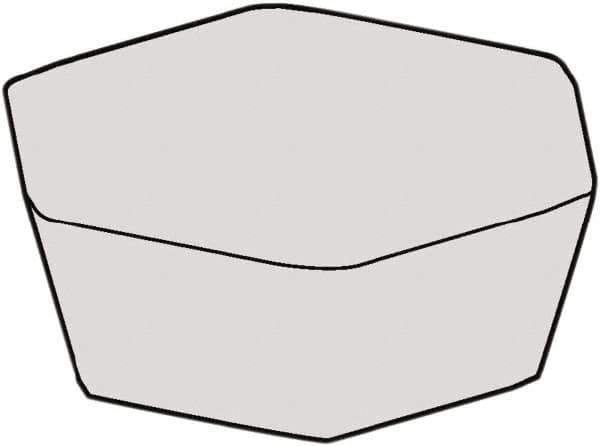

Kennametal - HDHN232 Grade KC514M Carbide Milling Insert - TiAlN Finish, 3/16" Thick, 1/2" Inscribed Circle, 0.032" Corner Radius
Item #: 38326732
Brand: Kennametal
Model #: 6210838
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HDHN |
| Insert Size | 232 |
| Material | Carbide |
| Manufacturer's Grade | KC514M |
| Coating | TiAlN |
| Length (Decimal Inch) | 0.2050 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0320 |
| Included Angle | 120 |
| Shape | Hexagon |
| Manufacturers Catalog Number | HDHN232ER |
| Cutter Series Compatibility | KCFM |
