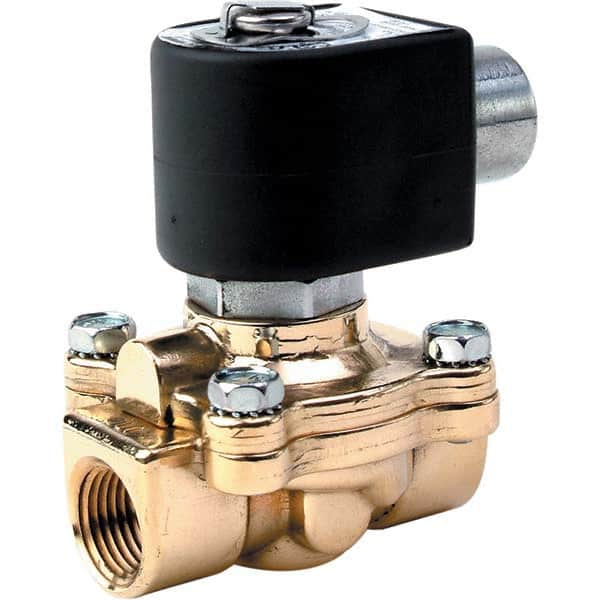

Solenoid Valve: 2-Way, 1/2″ Port, NPT Normally Closed, Brass, NBR Seal, 24/60Vac
Item #: 38659348
Brand: Parker
Model #: 38659348
Product Specifications
| Valve Type | Two-Way Internally Piloted Diaphragm |
| Port Size | 1/2 in |
| Valve Unactuated State | Normally Closed |
| Thread Standard | NPT |
| Body Material | Brass |
| Seal Material | NBR |
| Voltage | 24/60Vac |
| Maximum Working Pressure (Psi - 3 Decimals) | 200 |
| Cv Factor Nc | 4.0000 |
| Orifice Size | 5/8 |
| Standards | UL Listed; NEMA 4X; CSA Certified |
| Cv Rating | 4.000 |
| Coil Included | Yes |
| Minimum Working Pressure (psi) | 5 |
| Special Item Information | Complete Assembly Pressure Vessel & Coil |
| Maximum Temperature (F) ( - 0 Decimals) | 180 |
| Minimum Temperature (Deg F - 3 Decimals) | 0 |
| Maximum Temperature (C) | 180 |
