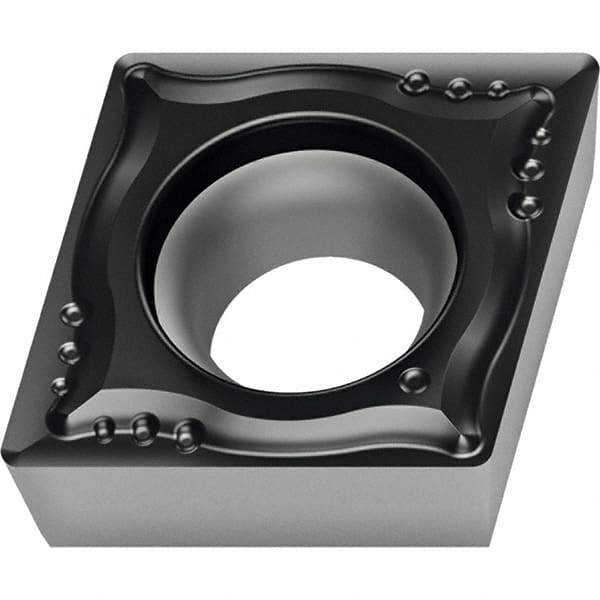

Walter - CPGT MM4 Grade WSM01 Turning Insert - TiAlN+Al2O3+(ZrN) Finish, 80° Rhombic, 9.53mm Inscr Circle, 3.97mm Thick, 0.1mm Corner Radius
Item #: 39753314
Brand: Walter
Model #: 7021253
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | CPGT |
| Length (mm) | 9.67 |
| Length (Decimal Inch) | 0.3810 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1560 |
| Thickness (mm) | 3.97 |
| Corner Radius (mm) | 0.1 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Manufacturer's Grade | WSM01 |
| Coating | TiAlN+Al2O3+(ZrN) |
| Chip Breaker | MM4 |
| Insert Length (Decimal Inch) | 0.3810 |
| OverallLength (mm) | 9.67 |
| Overall Length (Decimal Inch) | 0.3810 |
| Insert Length (mm) | 9.6719 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | CPGT09T301-MM4 WSM01 |
| Relief Angle | 11 |
| Proprietary Coating Designation | WSM01 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 7021253 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CPGT-MM4 |
| Maximum Depth of Cut (mm) | 9.67 |
| Maximum Depth of Cut (Decimal Inch) | 0.3810 |
| Cutting Width (mm) | 9.67 |
| Shape | Rhombic 80 |
