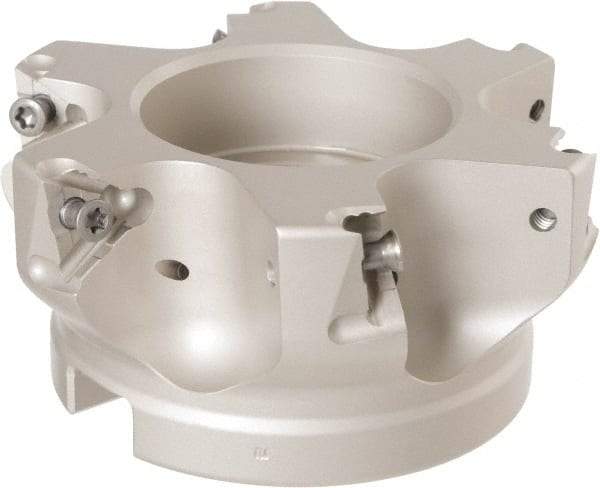

Iscar - 6 Inserts, 4" Cut Diam, 1-1/2" Arbor Diam, 17/32" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 2" High, H690 TNKX 160610 Insert Compatibility, Through Coolant, Series Helido
Item #: 40509713
Brand: Iscar
Model #: 3106647
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | H690 TNKX 160610 |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.5310 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | H690 F90AX |
| Number of Flutes | 6 |
| Hub Diameter (Decimal Inch) | 3.1500 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Keyway Depth (Decimal Inch) | 0.3750 |
| Counterbore Diameter (Decimal Inch) | 2.0300 |
| Complete Insert Compatibility | H690 TNKX 160610PNTR |
