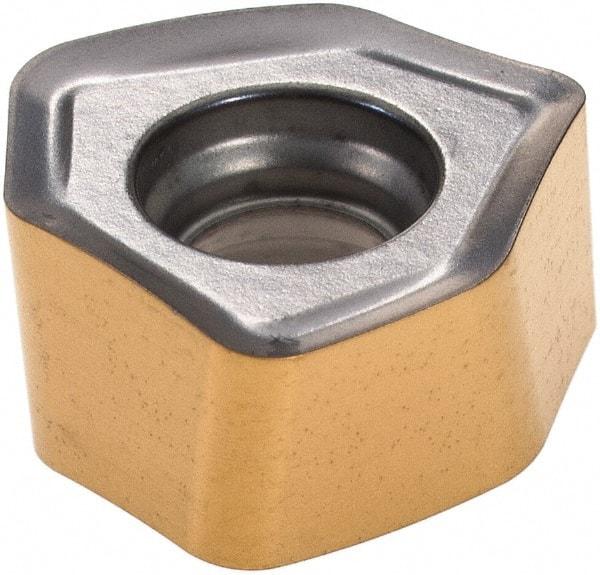

Iscar - H600 WXCU070515 HP Grade IC830 Carbide Milling Insert - TiAlN/TiN Finish, 0.2323" Thick, 0.4386" Inscribed Circle, 1.5mm Corner Radius
Item #: 40520249
Brand: Iscar
Model #: 5666933
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H600 WXCU |
| Insert Size | 070515 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/TiN |
| Length (Decimal Inch) | 0.2819 |
| Inscribed Circle (Decimal Inch) | 0.4386 |
| Thickness (Decimal Inch) | 0.2323 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Corner Radius (mm) | 1.50 |
| Coating Process | PVD |
| Shape | Trigon |
| Chipbreaker | HP |
| Manufacturers Catalog Number | H600 WXCU 070515HP |
