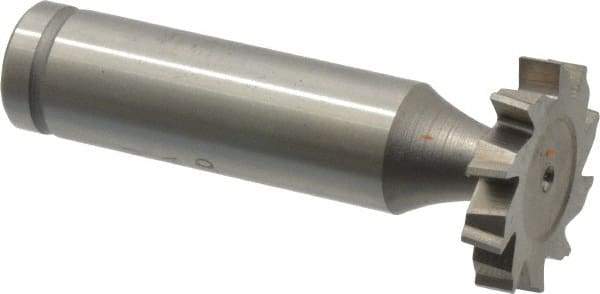

Made in USA - 7/8" Diam x 5/32" Face Width, Cobalt, 10 Teeth, Shank Connection Woodruff Keyseat Cutter - Uncoated, 2-5/32" OAL x 1/2" Shank, Staggered Teeth, ANSI 507, Old Standard 10
Item #: 40607160
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Staggered tooth cutters are used at higher speeds for larger and deeper cutting operations. They have fewer teeth than straight cutters for better chip removal from the workpiece.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Old Standard Number | 10 |
| American Standard Number (ANSI) | 507 |
| Cutting Diameter (Inch) | 7/8 |
| Cutting Diameter (Decimal Inch) | 0.8750 |
| Cutting Width (Inch) | 5/32 |
| Cutting Width (Decimal Inch) | 0.1563 |
| Tooth Configuration | Staggered |
| Material | Cobalt |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 2.1563 |
| Number of Teeth | 10 |
| Cutting Dia. Oversized for Resharpening | No |
| Material Grade | M42 |
| Weldon Flat | No |
