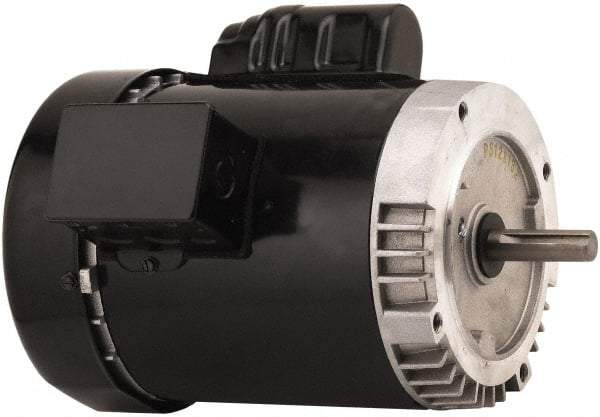

US Motors - 2 Max hp, 1,725 Max RPM, Single Cap Start-Cap Run Electric AC DC Motor - 115/208-230 V Input, Single Phase, 145TC Frame, 7/8" Shaft Diam, C-Face Mount, TEFC Enclosure
Item #: 40697872
Brand: US Motors
Model #: T2CM2J14CR
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Cap Start-Cap Run |
| Type of Enclosure | TEFC |
| Maximum HorsePower | 2 |
| Minimum Horsepower | 2 |
| Phase | Single |
| Input Voltage | 115/208-230 |
| Frame Size | 145TC |
| Full Load Amperage | 18.9/10.3-9.4 |
| Mount Type | C-Face Mount |
| Bearing Type | Ball |
| Shaft Diameter (Decimal Inch) | 0.8750 |
| Service Factor Rating | 1.00 |
| Maximum RPM | 1725 |
| PSC Code | 6105 |
