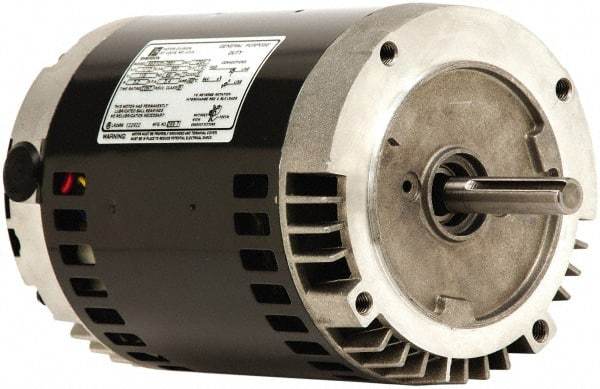

US Motors - 1-1/2 Max hp, 1,800 Max RPM, Single Cap Start Electric AC DC Motor - 115/208-230 V Input, Single Phase, 56C Frame, 5/8" Shaft Diam, C-Face Mount, ODP Enclosure
Item #: 40698052
Brand: US Motors
Model #: D32CA2JCR
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Cap Start |
| Type of Enclosure | ODP |
| Maximum HorsePower | 1-1/2 |
| Minimum Horsepower | 1-1/2 |
| Phase | Single |
| Input Voltage | 115/208-230 |
| Frame Size | 56C |
| Full Load Amperage | 19.2/10.0-9.6 |
| Mount Type | C-Face Mount |
| Bearing Type | Ball |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Service Factor Rating | 1.15 |
| Insulation Class | B |
| Maximum RPM | 1800 |
| PSC Code | 6105 |
