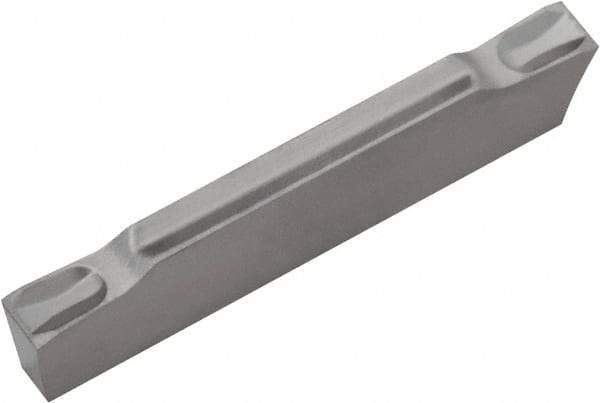

Kyocera - 2020GMM MT Grade PR930, 2mm Cutting Width Carbide Grooving Insert - 0.492" Max Depth of Cut, Left Hand, TiCN Finish
Item #: 40722472
Brand: Kyocera
Model #: 8806620
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GMM |
| Insert Size | 2020 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4920 |
| Material Grade | Super Micrograin |
| Manufacturer's Grade | PR930 |
| Coating | TiCN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 4.30 |
| Lead Angle | 15 |
| Chipbreaker | MT |
| Multi-Use Tool | Yes |
| Multi-Use Application | Deep Parting; Cut-Off |
| Corner Radius (mm) | 0.00 |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Series | KGM |
| Rake | Positive |
| ISO Number | GMM2020L-MT-15D |
| Insert Thickness (Decimal Inch) | 0.0591 |
