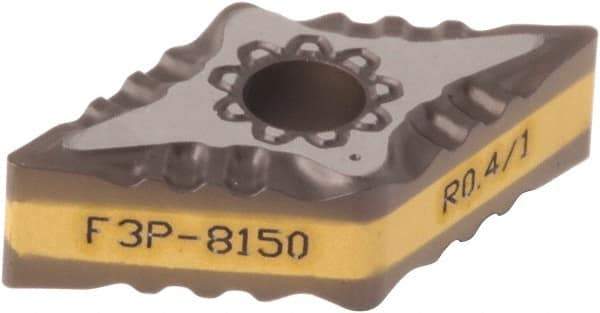

Iscar - DNMG331 F3P Grade IC8150 Carbide Turning Insert - TiCN/Al2O3/TiCN/TiN Finish, 55° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 40874646
Brand: Iscar
Model #: 5560576
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 331 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Manufacturer's Grade | IC8150 |
| Coating | TiCN/Al2O3/TiCN/TiN |
| Chip Breaker | F3P |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | DNMG110404 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 55 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
