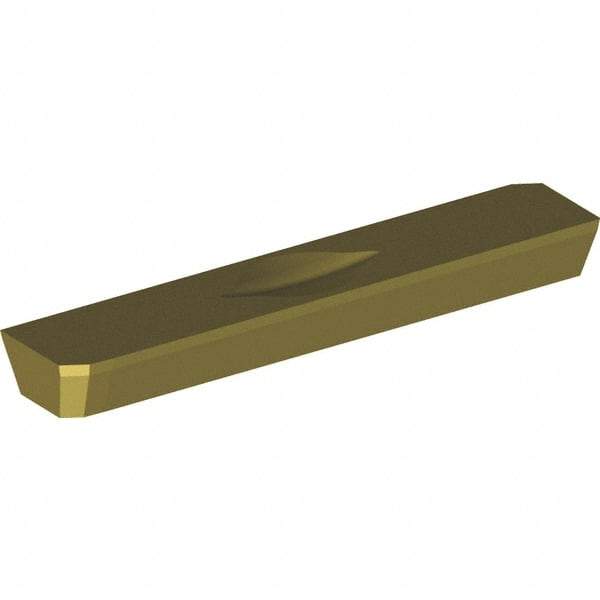

Kennametal - RIR1.0630 E13 Grade KC6005 Carbide Milling Insert - TiN Finish, 0.123" Thick
Item #: 40998494
Brand: Kennametal
Model #: 3856793
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RIR |
| Insert Size | 1.0630 |
| Material | Carbide |
| Manufacturer's Grade | KC6005 |
| Coating | TiN |
| Width (Decimal Inch) | 0.2190 |
| Length (Decimal Inch) | 1.0630 |
| Thickness (Decimal Inch) | 0.1230 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Relief Angle | 8.000 |
| Rake Angle | 12 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | E13 |
| ISO Number | RIR04E1312 |
