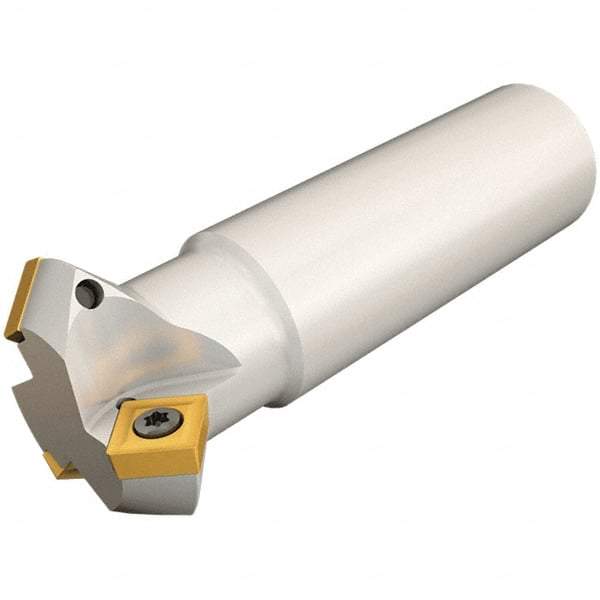

Iscar - 45° Lead Angle, 46.1mm Max Cut Diam, 30mm Min Cut Diam, 7.8mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 3 Inserts, SCMT-19, SCMW Insert Style, 100mm Overall Length, Straight Shank
Item #: 41077561
Brand: Iscar
Model #: 3110606
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (mm) | 30.00 |
| Maximum Cutting Diameter (mm) | 46.10 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Lead Angle | 45 |
| Overall Length (mm) | 100.00 |
| Insert Style | SCMT-19; SCMW |
| Series | IscarMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 7.80 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Toolholder Style | E45 |
| Number of Flutes | 3 |
| Head Length (mm) | 35.00 |
| Weldon Flat | Yes |
