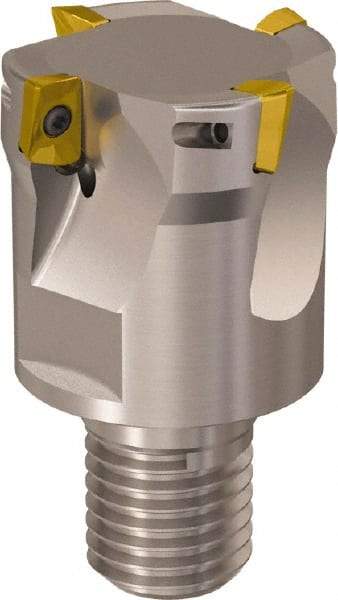

Seco - 50mm Cut Diam, 62mm Max Depth of Cut, 99mm OAL, Indexable Square Shoulder Helical End Mill - C6 Modular Connection, 90° Lead Angle, Through Coolant, Series R217.69
Item #: 41296153
Brand: Seco
Model #: 59254
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Overall Length/Projection (mm) | 99.00 |
| Lead Angle | 90 |
| Series | R217.69 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 62.00 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | R217.69 |
| Number of Flutes | 3 |
| Weldon Flat | No |
| Maximum RPM | 8900 |
| Toolholder Material | Steel |
