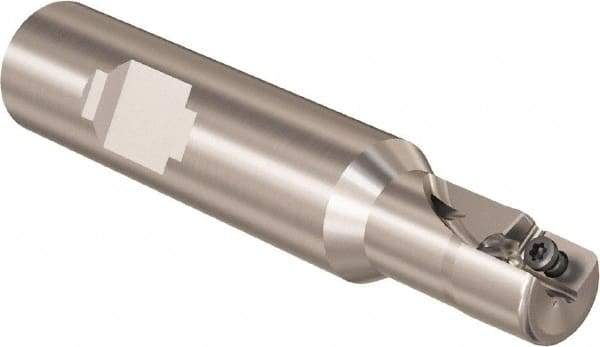

Seco - 1/2" Cut Diam, 9mm Max Depth of Cut, 5/8" Shank Diam, 58.4mm OAL, Indexable Square Shoulder Slot Milling End Mill - Weldon Shank, 90° Lead Angle, Through Coolant, Series R217.69
Item #: 41296294
Brand: Seco
Model #: 05334
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Cutting Diameter (Inch) | 1/2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length/Projection (mm) | 58.40 |
| Lead Angle | 90 |
| Series | R217.69 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 9.00 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | Slot Milling |
| Cutter Style | R217.69 |
| Number of Flutes | 1 |
| Weldon Flat | Yes |
| Maximum RPM | 33100 |
| Toolholder Material | Steel |
