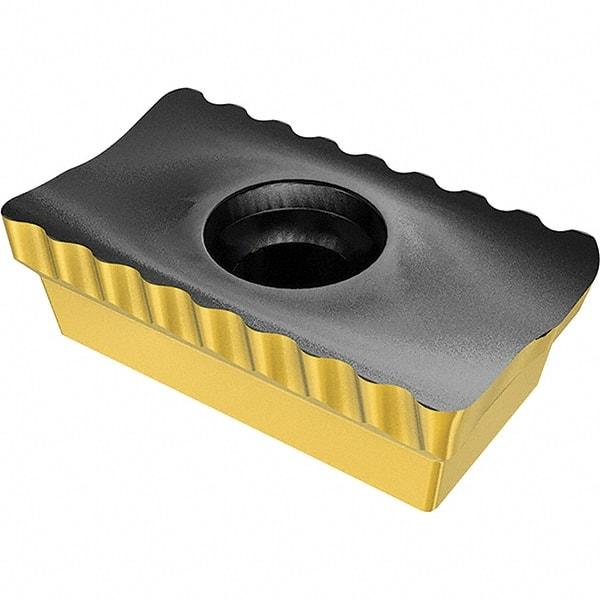

Iscar - P290 ACKT806 FW Grade IC882 Carbide Milling Insert - TiAlN/TiN Finish, 6mm Thick, 1.2mm Corner Radius
Item #: 41601899
Brand: Iscar
Model #: 5668576
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P290 ACKT |
| Insert Size | 806 |
| Material | Carbide |
| Manufacturer's Grade | IC882 |
| Coating | TiAlN/TiN |
| Width (mm) | 10.70 |
| Width (Decimal Inch) | 0.4210 |
| Length (mm) | 18.50 |
| Length (Decimal Inch) | 0.7280 |
| Thickness (mm) | 6.00 |
| Thickness (Decimal Inch) | 0.2360 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Coating Process | PVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | FW |
| Manufacturers Catalog Number | P290 ACKT 1806PDR-FW |
| ISO Number | P290 ACKT 1806PDR-FW |
| ANSI Number | P290 ACKT 1806PDR-FW |
