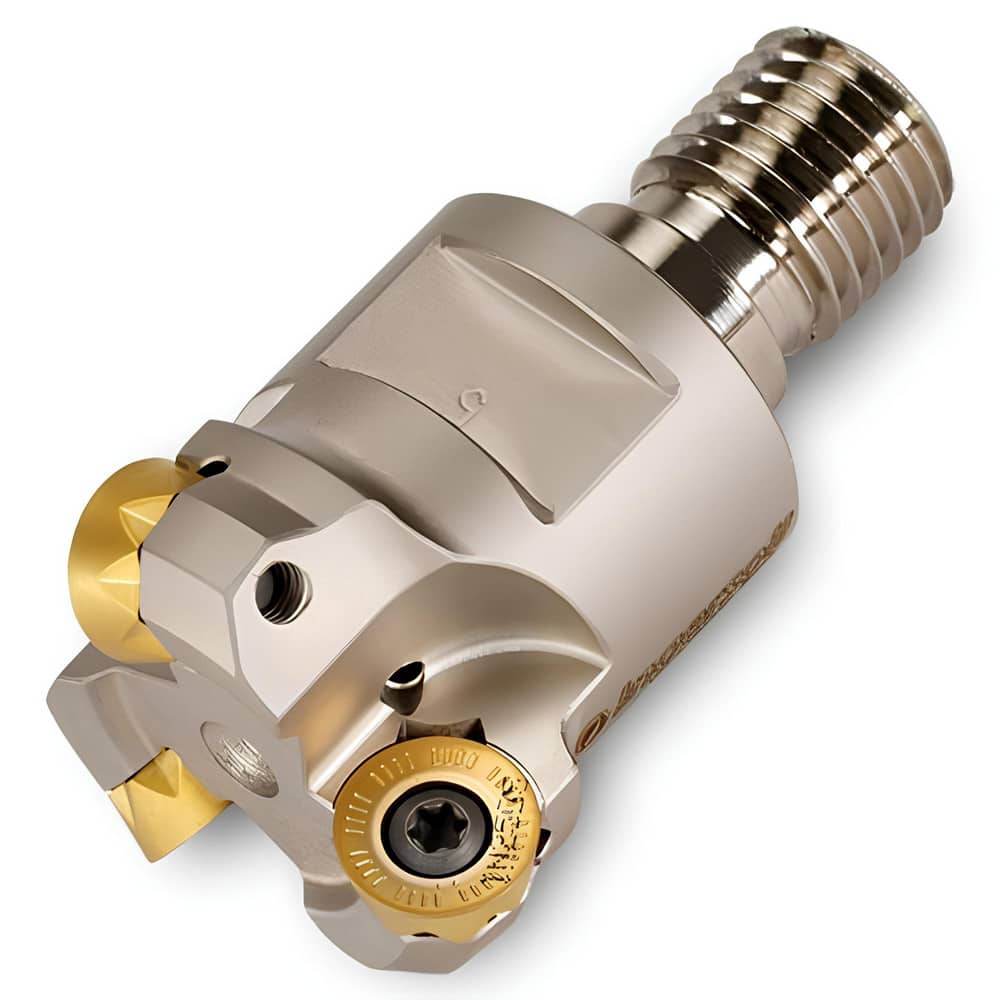

Indexable Copy End Mills; Maximum Depth Of Cut: 0.2362 in; Shank Type: Modular; Toolholder Style: 15B1B; Shank Diameter (Inch): 1.1300; Shank Diameter (mm): 1.1300; Maximum Ramping Angle: 6 ™; Compatible Insert Style: RJET; Compatible Insert Size Code: 1
Item #: 42512004
Brand: Ingersoll Cutting Tools
Model #: 3032529
Product Specifications
| Maximum Depth Of Cut | 0.2362 in |
| Shank Type | Modular |
| Toolholder Style | 15B1B |
| Shank Diameter (Inch) | 1.1300 |
| Shank Diameter (mm) | 1.1300 |
| Maximum Ramping Angle | 6 ? |
| Compatible Insert Style | RJET |
| Compatible Insert Size Code | 1204 |
| Number Of Cutter Inserts | 3 |
| Series | 15B1B |
| Overall Length (mm) | 1.50 |
| Overall Length (Decimal Inch) | 1.50 |
| Overall Length (Inch) | 1.50 |
| Flute Type | Straight |
| Functional Length | 1.5000 in |
| Tool Application | Facing; Pocketing; Milling; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Normal Pressure |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 1.0280 in |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 in |
| Minimum Cutting Diameter (Decimal Inch) | 1.0280 in |
| Modular Connection Size | M16 |
