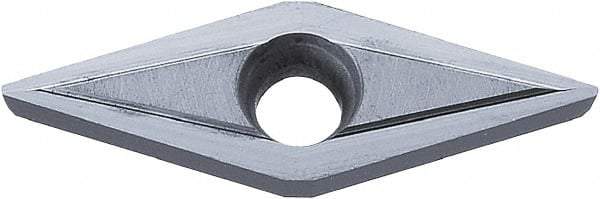

Kyocera - VCGT220.5 Z Grade TN60 Cermet Turning Insert - Uncoated, 35° Diamond, 1/4" Inscr Circle, 1/8" Thick, 0.008" Corner Radius
Item #: 42648899
Brand: Kyocera
Model #: 8815877
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | VCGT |
| Insert Size | 220.5 |
| Material | Cermet |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | TN60 |
| Coating | Uncoated |
| Chip Breaker | Z |
| Hole Diameter (mm) | 2.79 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | VCGT110302FN-Z |
| Rake | Positive |
| Relief Angle | 7 |
| Manufacturers Catalog Number | VCGT2205FNZ TN60 |
| Primary Workpiece Material | P |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | Sharp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
