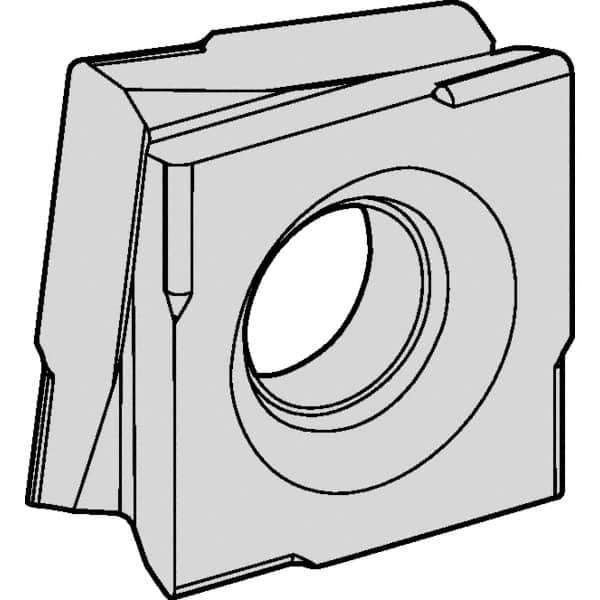

Kennametal - C8FIX150612 RP Grade KCP25 Carbide Turning Insert - TiCN/Al2O3 Finish, Irregular, 6.6mm Thick, 3/64" Corner Radius
Item #: 42691972
Brand: Kennametal
Model #: 5128598
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | C8FIX |
| Insert Size | 150612 |
| Material | Carbide |
| Thickness (Decimal Inch) | 0.2598 |
| Thickness (mm) | 6.60 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Manufacturer's Grade | KCP25 |
| Coating | TiCN/Al2O3 |
| Material Grade | C2/C3/C6/C7 |
| Chip Breaker | RP |
| Insert Length (Decimal Inch) | 0.3071 |
| Rake | Positive |
| Coating Process | CVD |
| Primary Workpiece Material | K; M; P |
| Secondary Workpiece Material | None |
| Insert Hand | Left Hand |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Insert Holding Method | Clamp |
| Shape | Irregular |
