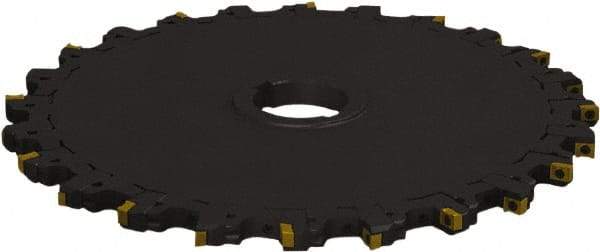

Seco - Arbor Hole Connection, 5/16" Cutting Width, 4.4" Depth of Cut, 12" Cutter Diam, 2" Hole Diam, 11 Tooth Indexable Slotting Cutter - 335.18 Toolholder, LNK.. 05.. Insert, Neutral Cutting Direction
Item #: 42716183
Brand: Seco
Model #: 15922
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.3120 |
| Maximum Depth of Cut (Decimal Inch) | 4.4000 |
| Cutter Diameter (Decimal Inch) | 12.0000 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Number of Teeth | 11 |
| Toolholder Style | 335.18 |
| Series | 335.18 |
| Insert Style | LNK.. 05.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 22 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 5300 |
| Minimum Cutting Width (Decimal Inch) | 0.3120 |
| Maximum Cutting Width (Decimal Inch) | 0.3750 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 0.6250 |
