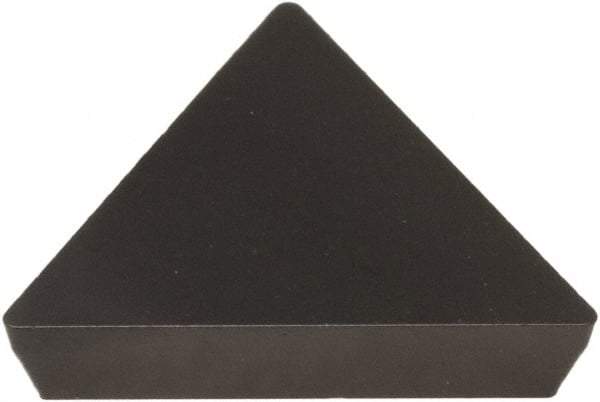

Hertel - TPG322 1 Grade HC1150T Carbide Turning Insert - Proprietary Finish, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 42800466
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPG |
| Insert Size | 322 |
| Material | Carbide |
| Length (mm) | 9.53 |
| Length (Decimal Inch) | 0.3750 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | HC1150T |
| Coating | Proprietary |
| Material Grade | HC1150T |
| Chip Breaker | 1 |
| Insert Length (Decimal Inch) | 0.3750 |
| Hole Diameter (mm) | 0.00 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| ISO Number | TPG 160308 |
| Rake | Positive |
| Rake Angle | 0 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TPG322 |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
