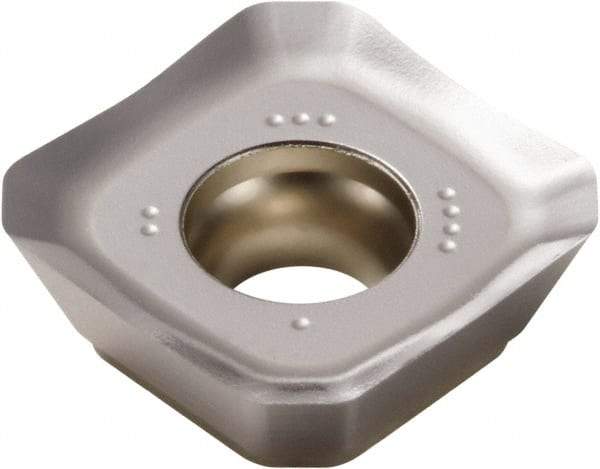

Seco - SEEX09T3 M05 Grade MS2050 Carbide Milling Insert - TiAlN/NbN Finish, 0.156" Thick, 3/8" Inscribed Circle
Item #: 42839647
Brand: Seco
Model #: 90221
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEEX |
| Insert Size | 09T3 |
| Material | Carbide |
| Material Grade | Micrograin |
| Manufacturer's Grade | MS2050 |
| Coating | TiAlN/NbN |
| Width (Decimal Inch) | 0.3750 |
| Length (Decimal Inch) | 0.3750 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1560 |
| Relief Angle | 20.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | M05 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| ISO Number | SEEX09T3AFN-M05 |
