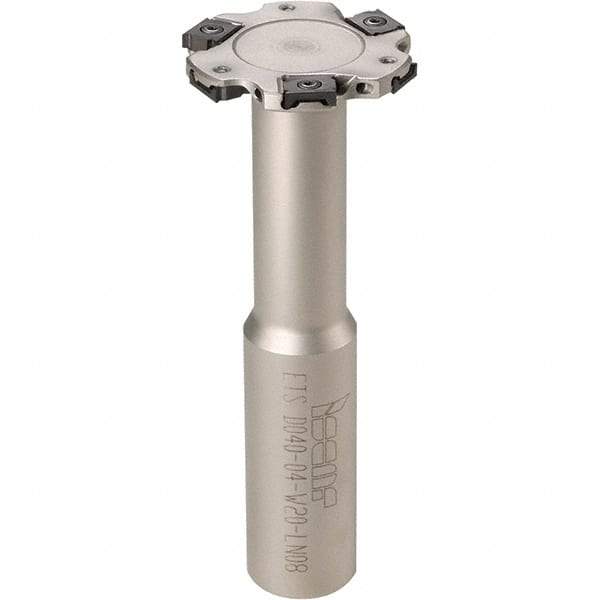

Iscar - Shank Connection, 7/8" Depth of Cut, 2-1/2" Cutter Diam, 5 Tooth Indexable Slotting Cutter - 3/4" Shank Diam, ETS-LN08 Toolholder, LNET 08 Insert, Right Hand Cutting Direction
Item #: 42880807
Brand: Iscar
Model #: 3106824
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Maximum Depth of Cut (Decimal Inch) | 0.8750 |
| Cutter Diameter (Decimal Inch) | 2.5000 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Teeth | 5 |
| Toolholder Style | ETS-LN08 |
| Series | Mini-TangSlot(ETS-LN08) |
| Insert Style | LNET 08 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Cutting Width (Decimal Inch) | 0.2690 |
| Radius | No |
| Weldon Flat | Yes |
| Manufacturers Catalog Number | ETS D2.50-.250-W.750-LN08 |
| Complete Insert Compatibility1 | LNET 081804-TN-N; LNET 082604-TN-N; LNET 082804-TN-N; LNET 083004-TN-N; LNET 083204-TN-N; LNET 083504-TN-N; LNET 083704-TN-N; LNET 084004-TN-N; LNET 084204-TN-N; LNET 084504-TN-N |
