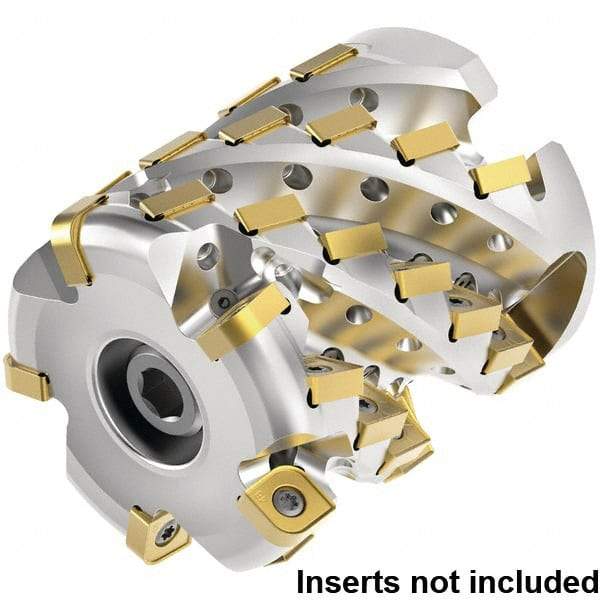

Kennametal - 60 Inserts, 3" Cut Diam, 1-1/4" Arbor Diam, 3.0853" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 4" High, SNHJ1004.. Insert Compatibility, Through Coolant, Series HARVI Ultra 8X
Item #: 42960955
Brand: Kennametal
Model #: 6456641
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Lead Angle | 0 |
| Overall Height (Inch) | 4 |
| Insert Compatibility | SNHJ1004.. |
| Series | HARVI Ultra 8X |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 3.0853 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 60 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | HU8X |
| Number of Flutes | 6 |
| Hub Diameter (Decimal Inch) | 2.8750 |
| Maximum Body Diameter (Decimal Inch) | 2.8782 |
| Maximum RPM | 13000 |
| Coolant Hole Diameter (Decimal Inch) | 0.0551 |
| Complete Insert Compatibility | SNHJ100464SNGDH; SNHJ100408SNGDH |
| Toolholder Material | Steel |
