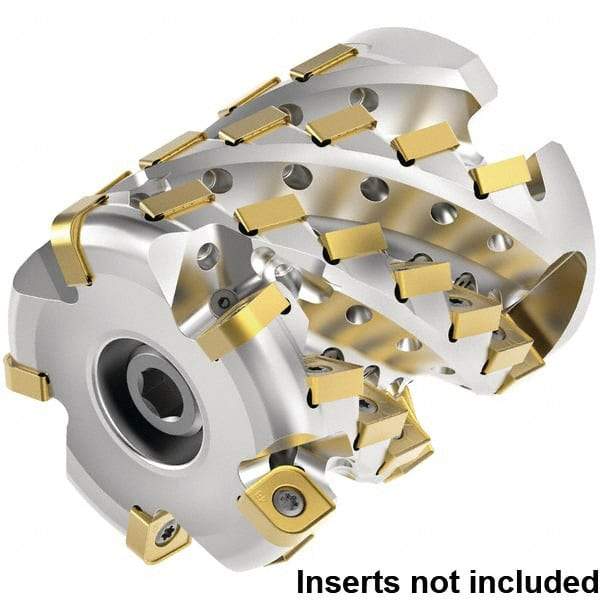

Kennametal - 44 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 85.03mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 98mm High, SNHJ1004.. Insert Compatibility, Through Coolant, Series HARVI Ultra 8X
Item #: 42993311
Brand: Kennametal
Model #: 6523850
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9680 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 90 |
| Overall Height (mm) | 98.00 |
| Insert Compatibility | SNHJ1004.. |
| Series | HARVI Ultra 8X |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 85.03 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 44 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | HU8X |
| Number of Flutes | 4 |
| Hub Diameter (mm) | 47.07 |
| Maximum Body Diameter (Decimal Inch) | 1.8531 |
| Maximum RPM | 16100 |
| Coolant Hole Diameter (Decimal Inch) | 0.0787 |
| Complete Insert Compatibility | SNHJ100424SNGDH; SNHJ100408SNGDH |
| Toolholder Material | Steel |
