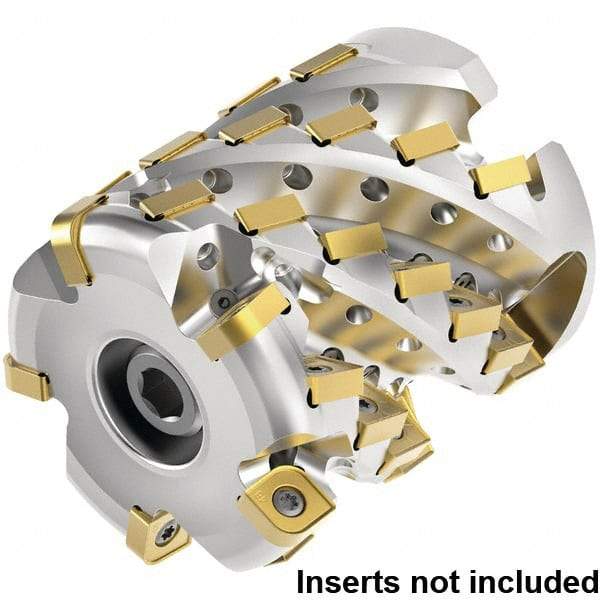

Kennametal - 35 Inserts, 80mm Cut Diam, 32mm Arbor Diam, 72mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 90mm High, SNHJ1206.. Insert Compatibility, Through Coolant, Series HARVI Ultra 8X
Item #: 42995431
Brand: Kennametal
Model #: 6524715
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 32.00 |
| Lead Angle | 90 |
| Overall Height (mm) | 90.00 |
| Insert Compatibility | SNHJ1206.. |
| Series | HARVI Ultra 8X |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 72.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 35 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | HU8X |
| Number of Flutes | 5 |
| Hub Diameter (mm) | 78.00 |
| Maximum Body Diameter (Decimal Inch) | 3.0280 |
| Maximum RPM | 12900 |
| Coolant Hole Diameter (Decimal Inch) | 0.0551 |
| Complete Insert Compatibility | SNHJ120624SNGDH; SNHJ120608SNGDH |
| Toolholder Material | Steel |
