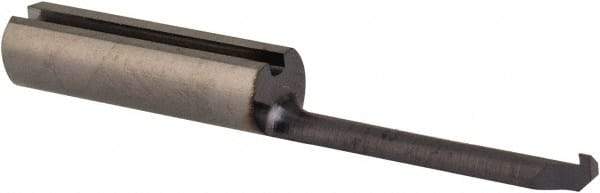

Iscar - 0.5mm Groove Width, 2mm Min Hole Diam, 15mm Max Hole Depth, Grooving Grooving Tool - 15mm Projection, 29mm OAL, Solid Carbide, TiAlN/TiN Finish
Item #: 43265867
Brand: Iscar
Model #: 6403944
Exact Tooling IR#: 04
Features and Benefits
Grooving tools are used for recessing or undercutting a workpiece.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Grooving Tool Type | Grooving |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Shank Diameter (mm) | 4.00 |
| Groove Width (Decimal Inch) | 0.0197 |
| Groove Width (mm) | 0.50 |
| Projection (Decimal Inch) | 0.5906 |
| Projection (mm) | 15.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.0787 |
| Minimum Hole Diameter (mm) | 2.00 |
| Maximum Hole Depth (Decimal Inch) | 0.5906 |
| Maximum Hole Depth (mm) | 15.00 |
| Overall Length (Decimal Inch) | 1.1417 |
| Overall Length (mm) | 29.00 |
| Finish/Coating | TiAlN/TiN |
| Manufacturer Grade | IC908 |
| Material Grade | Submicron |
