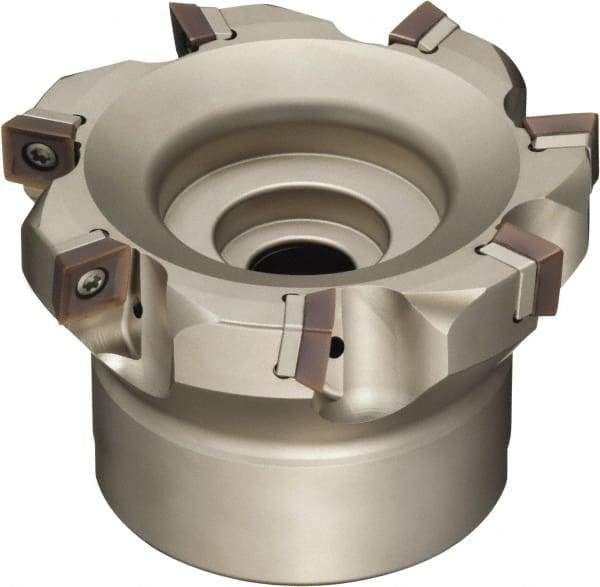

Sumitomo - 4 Inserts, 3" Cut Diam, 1" Arbor Diam, Indexable Square-Shoulder Face Mill - 1-3/4" High, SOMT 1204.. Insert Compatibility, Through Coolant, Series WaveMill
Item #: 43394931
Brand: Sumitomo
Model #: 2200W6N
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | SOMT 1204.. |
| Series | WaveMill |
| Through Coolant | Yes |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | WFX |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Complete Insert Compatibility | SOMT 120408PDER |
