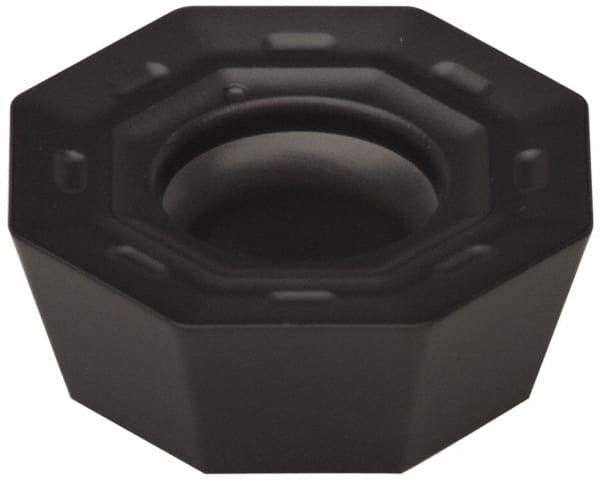

Walter - ODMT060512 D57 Grade WKP35S Carbide Milling Insert - TiCN/Al2O3 Finish, 0.2189" Thick, 1.2mm Corner Radius
Item #: 43484047
Brand: Walter
Model #: 5888180
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ODMT |
| Insert Size | 060512 |
| Material | Carbide |
| Manufacturer's Grade | WKP35S |
| Coating | TiCN/Al2O3 |
| Thickness (Decimal Inch) | 0.2189 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Corner Radius (mm) | 1.20 |
| Coating Process | PVD |
| Shape | Octagon |
| Chipbreaker | D57 |
| ISO Number | ODMT060512-D57 |
