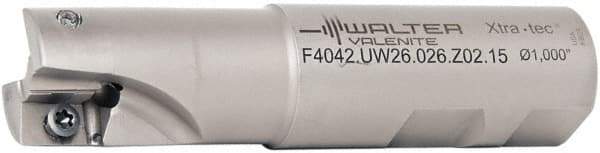

Walter - 1" Cut Diam, 15mm Max Depth of Cut, 1" Shank Diam, 3.871" OAL, Indexable Square Shoulder End Mill - AD.T 1606.. Inserts, Weldon Shank, 90° Lead Angle
Item #: 43486836
Brand: Walter
Model #: 5205207
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 3.8710 |
| Lead Angle | 90 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5910 |
| Number of Cutter Inserts | 2 |
| Cutter Style | F4042 |
| Insert Compatibility | AD.T 1606.. |
