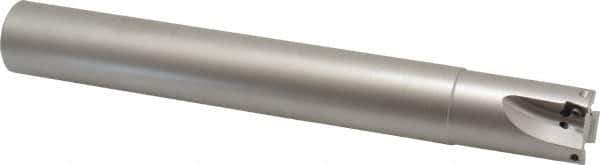

Walter - 1" Cut Diam, 8mm Max Depth of Cut, 1" Shank Diam, 8" OAL, Indexable Square Shoulder End Mill - AD.T 0803.. Inserts, Cylindrical Shank, 90° Lead Angle
Item #: 43487057
Brand: Walter
Model #: 5051575
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 8.0000 |
| Lead Angle | 90 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 3 |
| Cutter Style | F4042 |
| Insert Compatibility | AD.T 0803.. |
