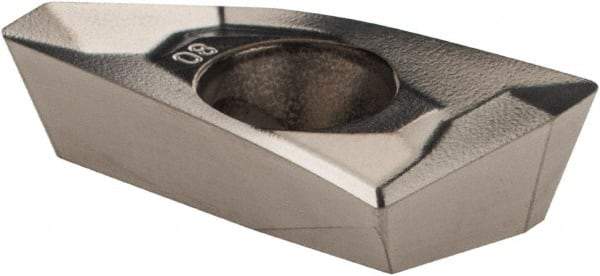

Kennametal - EC1808 Grade KC422M Carbide Milling Insert - TiB2 Finish, 0.2165" Thick, 0.8mm Corner Radius
Item #: 43503333
Brand: Kennametal
Model #: 3292774
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EC |
| Insert Size | 1808 |
| Material | Carbide |
| Manufacturer's Grade | KC422M |
| Coating | TiB2 |
| Width (Decimal Inch) | 0.4319 |
| Length (Decimal Inch) | 0.8567 |
| Thickness (Decimal Inch) | 0.2165 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 15.000 |
| Rake Angle | 15 |
| Included Angle | 75 |
| Shape | Parallelogram |
| ISO Number | EDCT180508PDERLDJ |
