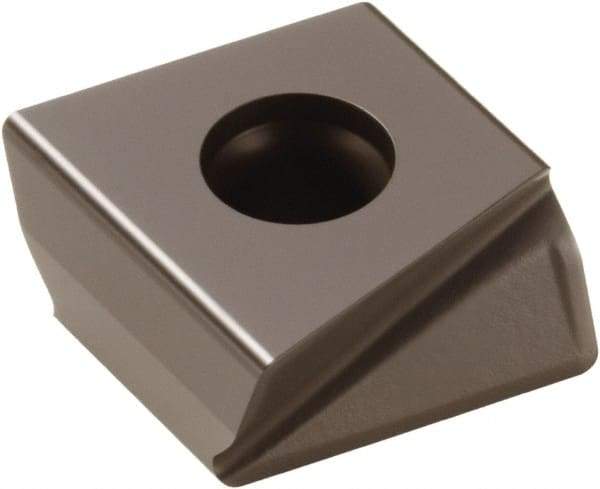

Seco - XNHQ140716 M11 Grade MP2500 Carbide Milling Insert - TiCN/Al2O3 Finish, 0.295" Thick, 1/16" Corner Radius
Item #: 43543644
Brand: Seco
Model #: 75578
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNHQ |
| Insert Size | 140716 |
| Material | Carbide |
| Manufacturer's Grade | MP2500 |
| Coating | TiCN/Al2O3 |
| Length (Decimal Inch) | 0.5510 |
| Thickness (Decimal Inch) | 0.2950 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Relief Angle | 0.000 |
| Rake Angle | 16 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | M11 |
| ISO Number | XNHQ140716TN4-M11 |
