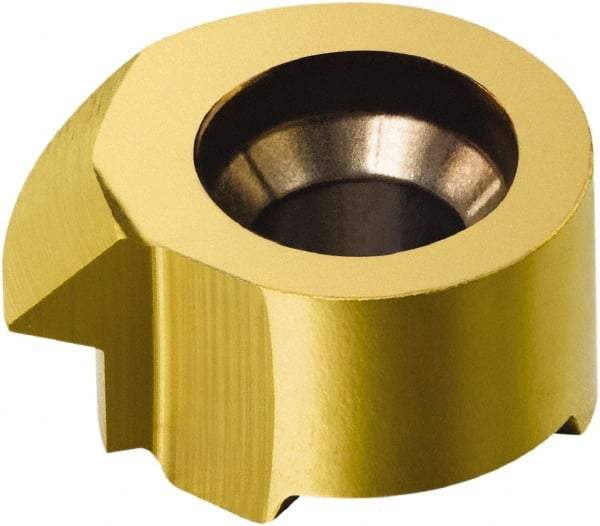

Sandvik Coromant - MB-xxTH..VM..L07 Grade 1025, Internal 60° V Threading Insert - 1.5 to 1.75mm & 15 to 17 TPI Int Pitch, Left Hand Insert, TiAlN/TiN Finish, Carbide
Item #: 43733872
Brand: Sandvik Coromant
Model #: 5736168
Exact Tooling IR#: 04
Features and Benefits
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MB-xxTH..VM..L |
| Insert Size | 07 |
| Thread Type | Internal |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Thread Standard | 60 Degrees V |
| Manufacturer's Grade | 1025 |
| Internal Pitch/TPI | 1.5-1.75 mm; 15-17 TPI |
| Coating | TiAlN/TiN |
| Material | Carbide |
| ISO Number | MB-07TH150VM-10L 1025 |
| Series | CoroCut MB |
| Included Angle of Threading Tip | 60 |
