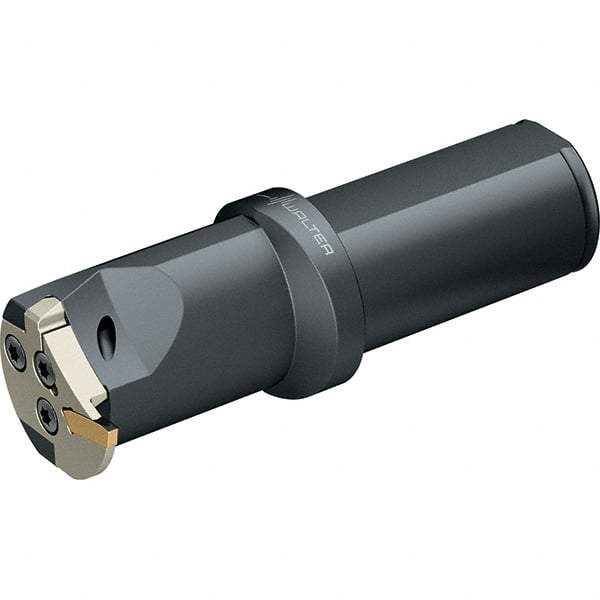

Walter - NCAI, Internal, Right Hand, 6mm Max Depth of Cut, 2 to 2.5mm Groove Width, Indexable Grooving Tool Holder - GX09-1E.. Insert Compatibility, 32mm Shank Width, 250.7mm OAL, Through Coolant
Item #: 43920446
Brand: Walter
Model #: 5009479
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (mm) | 2.50 |
| Maximum Groove Width (Decimal Inch) | 0.0984 |
| Overall Length (mm) | 250.70 |
| Overall Length (Decimal Inch) | 9.8701 |
| Toolholder Style | NCAI |
| Insert Compatibility | GX09-1E.. |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2598 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Self Clamp |
| Minimum Hole Diameter (mm) | 32.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.2598 |
| Center to Cutting Edge (mm) | 22.50 |
| Center to Cutting Edge (Decimal Inch) | 0.8858 |
| Head Height (Decimal Inch) | 1.2598 |
| Head Height (mm) | 32.00 |
| Head Length (mm) | 62.40 |
| Head Length (Decimal Inch) | 2.4567 |
| Full Radius Insert | No |
| Shank Length (mm) | 188.30 |
| Shank Length (Decimal Inch) | 7.4134 |
| Complete Insert Compatibility | GX09-1E200N02-GD3; GX09-1E200N02-UF4; GX09-1E250N02-GD3 |
