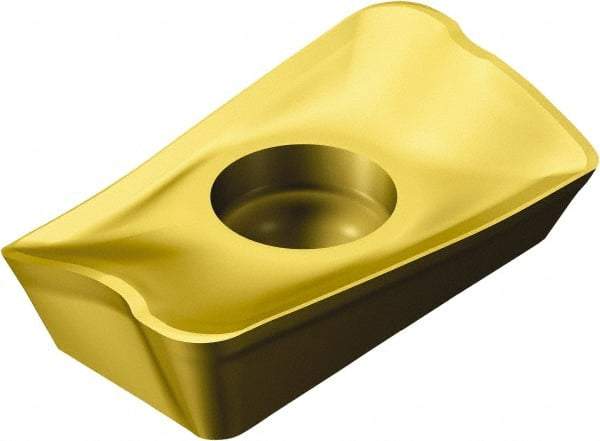

Sandvik Coromant - R39011T308 KM Grade 1020 Carbide Milling Insert - TiAlN Finish, 3.59mm Thick, 6.8mm Inscribed Circle, 0.8mm Corner Radius
Item #: 43945674
Brand: Sandvik Coromant
Model #: 5745644
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R390 |
| Insert Size | 11T308 |
| Material | Carbide |
| Manufacturer's Grade | 1020 |
| Coating | TiAlN |
| Width (mm) | 6.80 |
| Width (Decimal Inch) | 0.2677 |
| Length (mm) | 10.00 |
| Length (Decimal Inch) | 0.3937 |
| Inscribed Circle (mm) | 6.80 |
| Inscribed Circle (Decimal Inch) | 0.2677 |
| Thickness (mm) | 3.59 |
| Thickness (Decimal Inch) | 0.1413 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Coating Process | PVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | KM |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Manufacturers Catalog Number | R390-11 T3 08M-KM 1020 |
