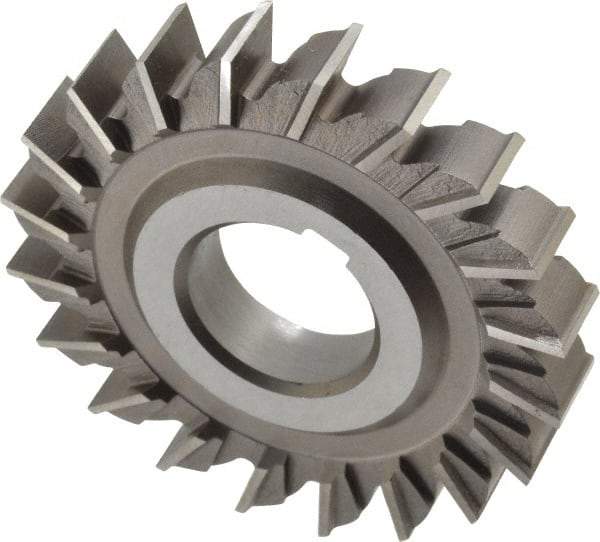

Keo - 3" Diam x 1/2" Width of Cut, 20 Teeth, High Speed Steel Side Milling Cutter - Straight Teeth, Uncoated
Item #: 44105583
Brand: Keo
Model #: 05190
Exact Tooling IR#: 04
Features and Benefits
Straight tooth cutters are used for general purpose applications and where a deeper cut is not required. They have more teeth than staggered cutters for a finer finish on the workpiece.
High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Cutter Diameter (Inch) | 3 |
| Cutting Width (Inch) | 1/2 |
| Cutting Width (Decimal Inch) | 0.5000 |
| Tooth Configuration | Straight |
| Material | High Speed Steel |
| Finish/Coating | Uncoated |
| Arbor Hole Diameter (Inch) | 1 |
| Number of Teeth | 20 |
| Helix Angle | 0.00 |
| Radial Rake Angle | +10 |
