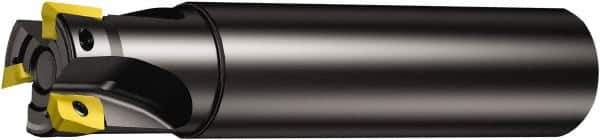

Sandvik Coromant - 1/2" Cut Diam, 5.8mm Max Depth of Cut, 1/2" Shank Diam, 70mm OAL, Indexable Square Shoulder Ramping End Mill - 390R-07.. Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series CoroMill 390
Item #: 44371227
Brand: Sandvik Coromant
Model #: 6851121
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Cutting Diameter (Inch) | 1/2 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length/Projection (mm) | 70.00 |
| Overall Length/Projection (Decimal Inch) | 2.7559 |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 5.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.2283 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | Ramping End Mill |
| Cutter Style | CoroMill 390 |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Inch) | 1/2 |
| Minimum Cutting Diameter (Decimal Inch) | 0.5000 |
| Head Length (mm) | 18.00 |
| Head Length (Decimal Inch) | 0.7087 |
| Weldon Flat | No |
| Insert Compatibility | 390R-07.. |
| Shank Length (Decimal Inch) | 2.0472 |
| Maximum RPM | 44500 |
| Toolholder Material | Steel |
