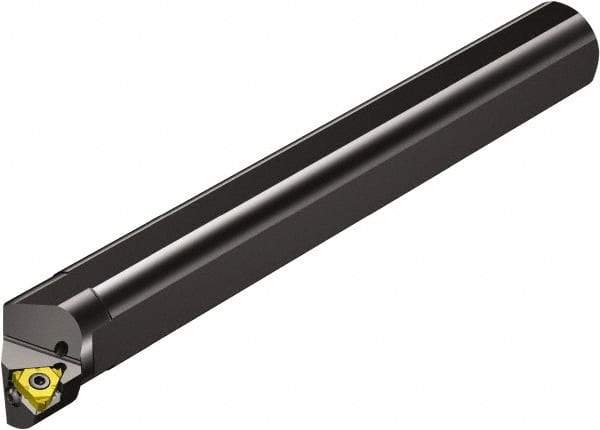

Sandvik Coromant - Internal/External Thread, Right Hand Cut, 5/8" Shank Width x 14.3mm Shank Height Indexable Threading Toolholder - 8" OAL, 266RL-16 Insert Compatibility, 266RKF Toolholder, Series CoroThread 266
Item #: 44415149
Brand: Sandvik Coromant
Model #: 5961386
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal/External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (Inch) | 5/8 |
| Shank Height (mm) | 14.30 |
| Shank Height (Decimal Inch) | 0.5630 |
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (Inch) | 8 |
| Insert Compatibility | 266RL-16 |
| Series | CoroThread 266 |
| Toolholder Style | 266RKF |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Inch) | 8 |
| Back of Bar to Cutting Edge (Decimal Inch) | 8.0000 |
| Center to Cutting Edge (mm) | 11.99 |
| Center to Cutting Edge (Decimal Inch) | 0.4720 |
| Neck Diameter (Decimal Inch) | 0.6250 |
| Head Length (Inch) | 1-7/8 |
| Head Length (Decimal Inch) | 1.8750 |
| Shank Length (Inch) | 8 |
| Shank Length (Decimal Inch) | 8.0000 |
| Maximum Bore Depth (Decimal Inch) | 1.8750 |
| Minimum Bore Diameter (Decimal Inch) | 0.7900 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
