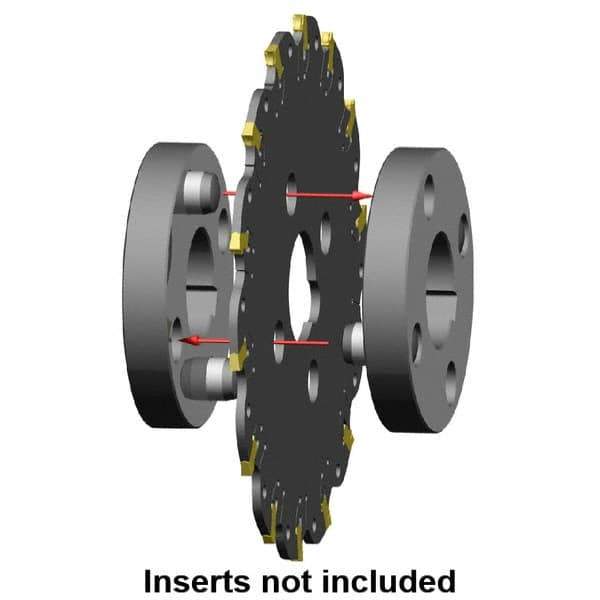

Kennametal - Arbor Hole Connection, 0.0866" Cutting Width, 1-1/16" Depth of Cut, 100mm Cutter Diam, 0.8661" Hole Diam, 9 Tooth Indexable Slotting Cutter - KVNS Toolholder, 3.900 Insert
Item #: 44820827
Brand: Kennametal
Model #: 1246132
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 2.20 |
| Cutting Width (Decimal Inch) | 0.0866 |
| Maximum Depth of Cut (mm) | 27.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.0630 |
| Cutter Diameter (mm) | 100.00 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (mm) | 22.00 |
| Hole Diameter (Decimal Inch) | 0.8661 |
| Number of Teeth | 9 |
| Toolholder Style | KVNS |
| Series | KVNS A2 |
| Insert Style | 3.900 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 3200 |
| Minimum Cutting Width (Decimal Inch) | 0.0866 |
| Hub Diameter (mm) | 46.00 |
| Hub Diameter (Decimal Inch) | 1.8110 |
| Cutter Body Width (mm) | 1.80 |
| Cutter Body Width (Decimal Inch) | 0.0709 |
| Complete Insert Compatibility1 | 3.90022.. |
