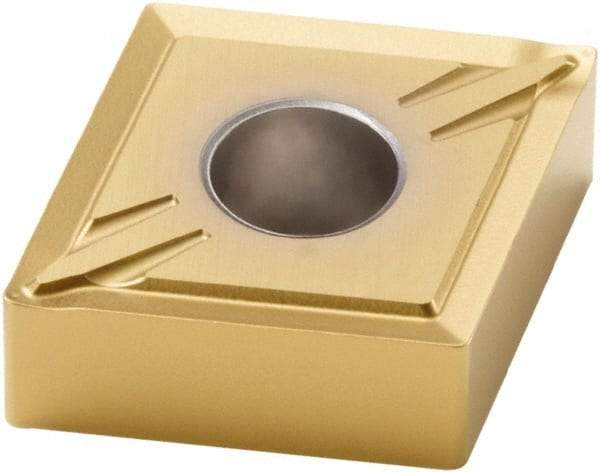

Seco - CNMG430.5 FF2 Grade CP500 Carbide Turning Insert - 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 0.008" Corner Radius
Item #: 44942019
Brand: Seco
Model #: 74981
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 430.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | CP500 |
| Chip Breaker | FF2 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Relief Angle | 0 |
| Manufacturers Catalog Number | CNMG 430.5-FF2 |
| Primary Workpiece Material | M |
| Secondary Workpiece Material | P; S |
| Included Angle | 80 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
