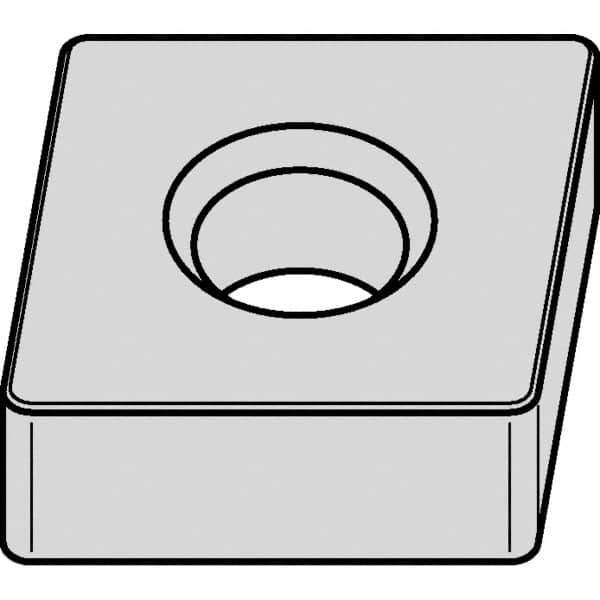

Kennametal - CNGA643 Grade KY4300 Ceramic Turning Insert - Uncoated, 80° Diamond, 3/4" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 45149457
Brand: Kennametal
Model #: 3608047
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | CNGA |
| Insert Size | 643 |
| Material | Ceramic |
| Length (mm) | 19.34 |
| Length (Decimal Inch) | 0.7616 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | KY4300 |
| Coating | Uncoated |
| Hole Diameter (mm) | 7.94 |
| Hole Diameter (Decimal Inch) | 0.3125 |
| ISO Number | CNGA190612T02020 |
| Rake | Negative |
| Relief Angle | 0 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | Kenloc |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
