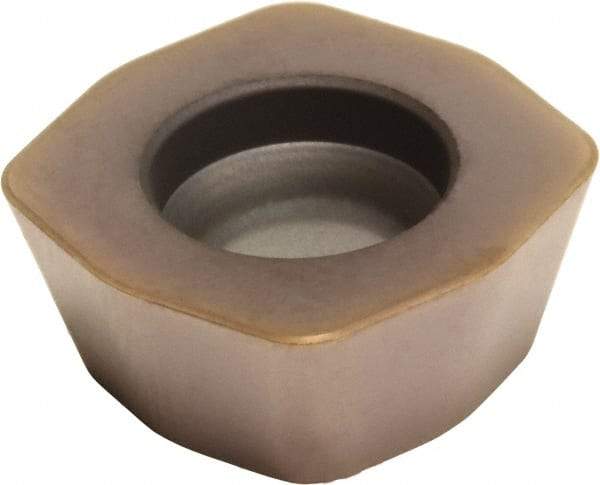

Sumitomo - SDEW1406 Grade ACK200 Carbide Milling Insert - Al2O3 Finish, 0.236" Thick, 0.551" Inscribed Circle, 0.079" Corner Radius
Item #: 45203536
Brand: Sumitomo
Model #: 14HC107
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDEW |
| Insert Size | 1406 |
| Material | Carbide |
| Manufacturer's Grade | ACK200 |
| Coating | Al2O3 |
| Inscribed Circle (Decimal Inch) | 0.5510 |
| Thickness (Decimal Inch) | 0.2360 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Hole Diameter (Decimal Inch) | 0.1970 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
