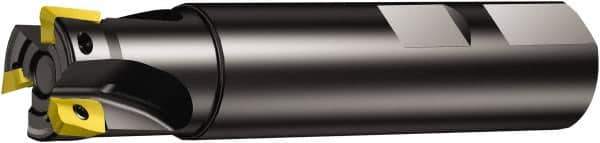

Sandvik Coromant - 1" Cut Diam, 10.0076mm Max Depth of Cut, 1" Shank Diam, 3-3/4" OAL, Indexable Square Shoulder Ramping End Mill - R390-11.. Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series CoroMill 390
Item #: 45301637
Brand: Sandvik Coromant
Model #: 5739315
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Inch) | 3-3/4 |
| Overall Length/Projection (Decimal Inch) | 3.7510 |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | Ramping End Mill |
| Cutter Style | CoroMill 390 |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Inch) | 1 |
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Head Length (Inch) | 1-1/4 |
| Head Length (Decimal Inch) | 1.2500 |
| Weldon Flat | Yes |
| Insert Compatibility | R390-11.. |
| Shank Length (Decimal Inch) | 2.5010 |
| Maximum RPM | 36100 |
| Toolholder Material | Steel |
