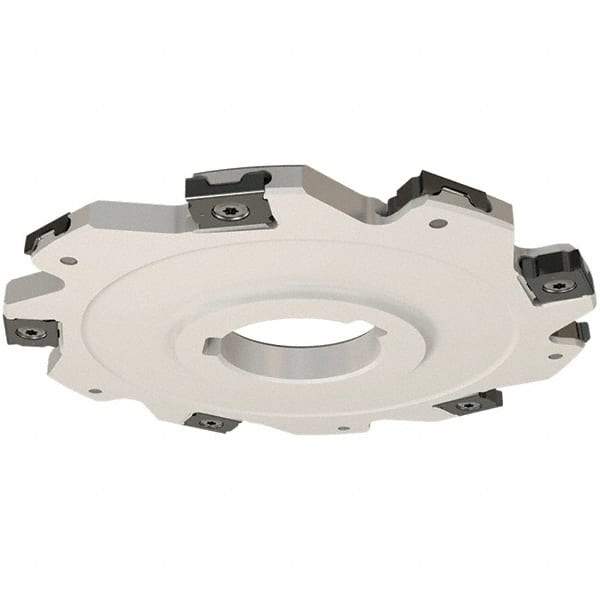

Iscar - Arbor Hole Connection, 0.157" Cutting Width, 22mm Depth of Cut, 80mm Cutter Diam, 22mm Hole Diam, 10 Tooth Indexable Slotting Cutter - SDN Toolholder, LNET Insert, Right Hand Cutting Direction
Item #: 45386992
Brand: Iscar
Model #: 3104939
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (mm) | 22.00 |
| Cutter Diameter (mm) | 80.00 |
| Hole Diameter (mm) | 22.00 |
| Number of Teeth | 10 |
| Toolholder Style | SDN |
| Series | Mini-TangSlot(SDN-LN08) |
| Insert Style | LNET |
| Number of Cutter Inserts | 5 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Cutting Width (mm) | 4.50 |
| Hub Diameter (mm) | 34.00 |
| Cutting Radius (Inch) | 1/64 |
| Complete Insert Compatibility1 | LNET 081804-TN-N |
