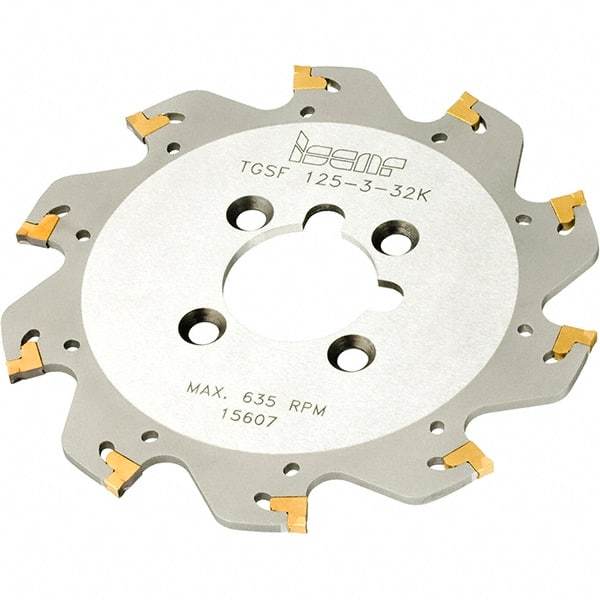

Iscar - Arbor Hole Connection, 2mm Cutting Width, 34mm Depth of Cut, 125mm Cutter Diam, 32mm Hole Diam, 13 Tooth Indexable Slotting Cutter - TGSF Toolholder, TAG Insert, Right Hand Cutting Direction
Item #: 45387271
Brand: Iscar
Model #: 2302435
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 2.00 |
| Maximum Depth of Cut (mm) | 34.00 |
| Cutter Diameter (mm) | 125.00 |
| Hole Diameter (mm) | 32.00 |
| Number of Teeth | 13 |
| Toolholder Style | TGSF |
| Series | TangSlit(TGSF) |
| Insert Style | TAG |
| Staggered Tooth | No |
| Number of Cutter Inserts | 13 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Maximum RPM | 640 |
| Hub Diameter (mm) | 55.00 |
| Cutting Radius (Inch) | 1/64 |
| Cutter Body Width (mm) | 1.65 |
| Complete Insert Compatibility1 | TAG N2A; TAG N2C; TAG N2J; TAG N2JS; TAG N2JT; TAG N2LF; TAG N2UT |
