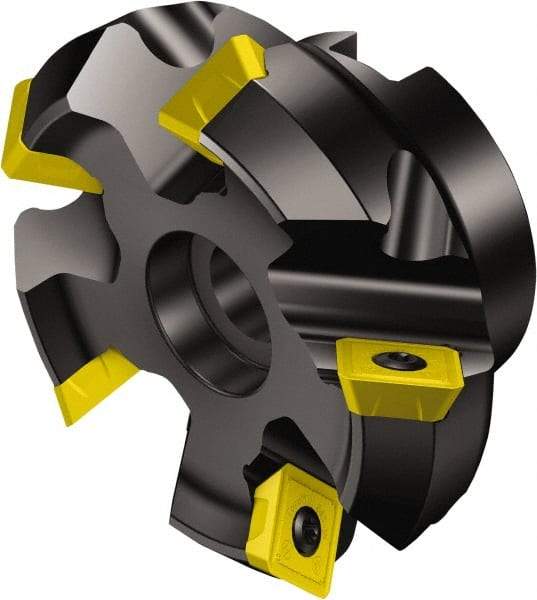

Sandvik Coromant - 10" Cut Diam, 2-1/2" Arbor Hole, 0.24" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 10 Inserts, R245-12T3.. Insert, Right Hand Cut, Series CoroMill 245
Item #: 45418860
Brand: Sandvik Coromant
Model #: 5738479
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 10 |
| Cutting Diameter (Decimal Inch) | 10.0000 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | R245-12T3.. |
| Series | CoroMill 245 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2400 |
| Number of Cutter Inserts | 10 |
| Cutter Style | RA245..Rxx |
| Keyway Width (Decimal Inch) | 1.0118 |
| Maximum RPM | 7100 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | R245-12T3.. |
| Toolholder Material | Steel |
